    915MHz 4dBi Outdoor Indoor Omnidirectional Helium Antenna For RAK Nebra Hotspot Miner

    Ask Lasest Price
    Brand Name : TX
    Model Number : TX-HG056
    Certification : RoHs
    Price : Price Discussion
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 50000 pcs PER WEEK
    Delivery Time : 20-30 WORK DAYS
    • Product Details
    • Company Profile

    915MHz 4dBi Outdoor Indoor Omnidirectional Helium Antenna For RAK Nebra Hotspot Miner

    4 dBi Helium Antenna 915Mhz Outdoor Indoor Omni-Directional Lora Antenna for RAK Nebra hotspot miner

    Features:
    1.
    Frequency Range:902MHz - 928MHz. Gain:4dBi; Antenna Connector:N-Male; Impedance:50 ohm; SWR≤1.5;
    2. Industrial Grade Construction Design, Quality Build, and Durable Fiberglass Finish Make it More Suitable for All-Weather Operation. Built-in Pure Copper Oscillator for Performance Ultra Distance Signal Transmission.
    3. Optimized size and frequency band.
    4. High gain, low standing wave, strong anti-interference ability.

    Electrical Specifications of Ultra-wideband fiberglass antenna

    Frequency range(Hz)902-928 MHz
    Gain (dBi)4
    VSWR≤1.5
    Input impedance(Ω)50
    PolarizationVertical
    Lightning ProtectionDC Ground
    Input connector typeN female or Requested
    Mechanica Specifications
    Dimensions(mm)φ25*420
    Openrating temperature(℃)—45~85
    Radome colorGray, Black, White

    Fiberglass Antenna for base station

    These series are heavy-duty, Omnidirectional fiberglass base station antennas. It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating. Operate on 100 MHz, 433MHz, 868MHz, 915Mhz, 2.4 GHz, 3G, 4G, 5G, and 6 GHz frequencies and are used for ISM, Wi-Fi, IoT, RFID, UWB, and DSRC applications. Two types of antenna mounting are offered: connector mount and pole/mast mount. Antennas with a connector mount do not include additional mounting hardware, they have an N Plug connector and are IP67 certified. Antennas with a pole/mast mount are attached to an included aluminum guided pipe which is attached to a pole/mast with included mounting brackets. They have an N Jack connector. Tengxiang base station antennas have gain from 3 to 12 dBi.


    Product show:

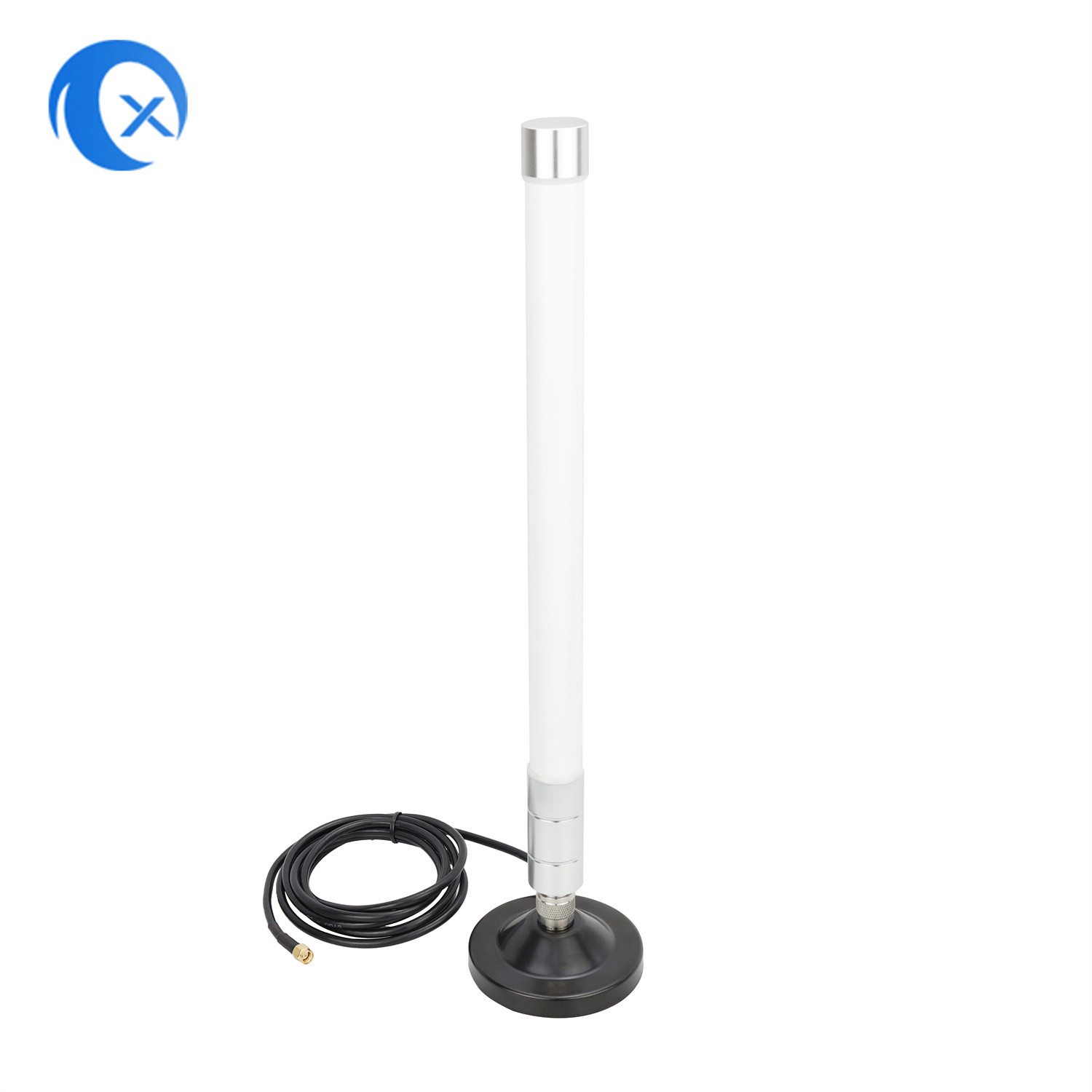

    915MHz 4dBi Outdoor Indoor Omnidirectional Helium Antenna For RAK Nebra Hotspot Miner

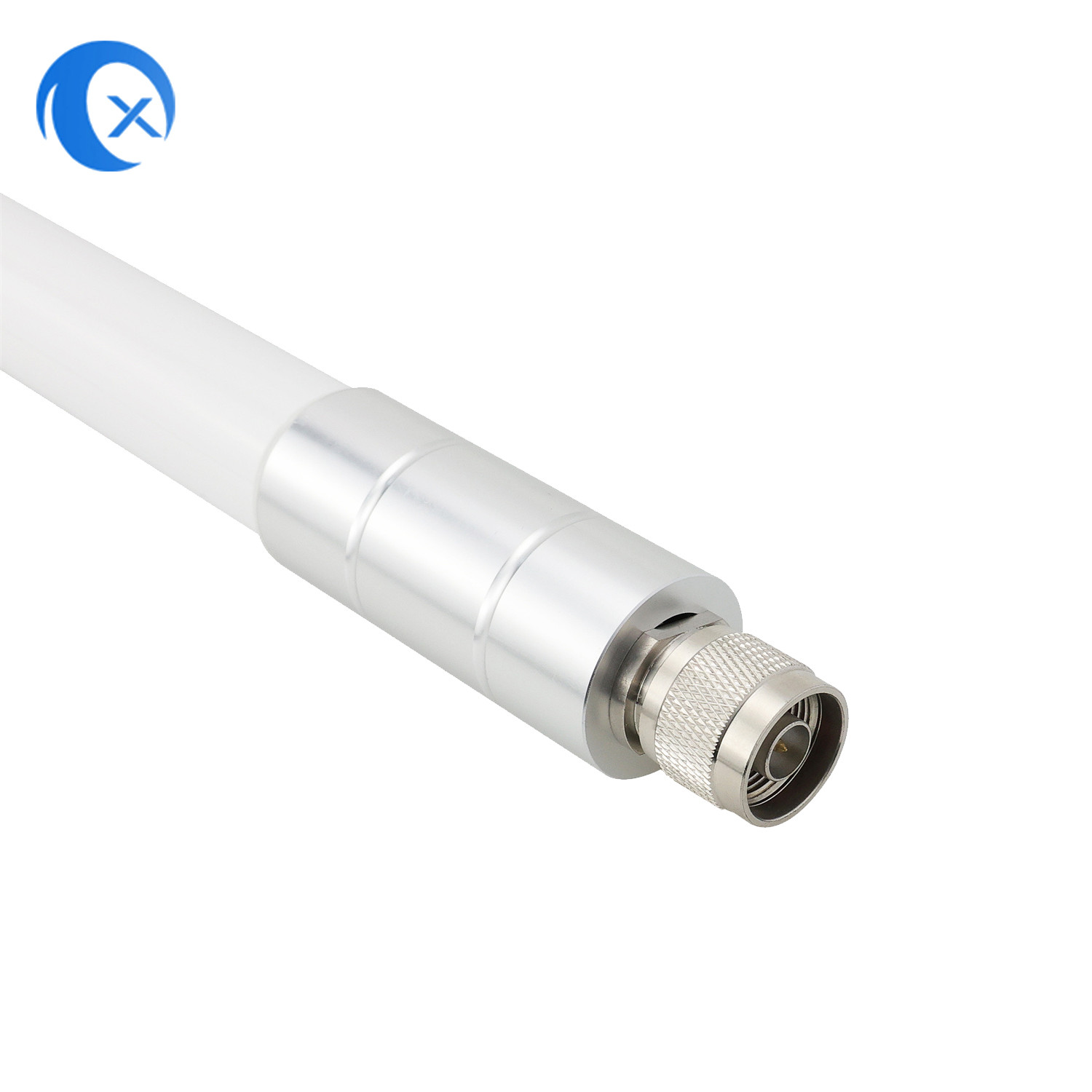

    915MHz 4dBi Outdoor Indoor Omnidirectional Helium Antenna For RAK Nebra Hotspot Miner
