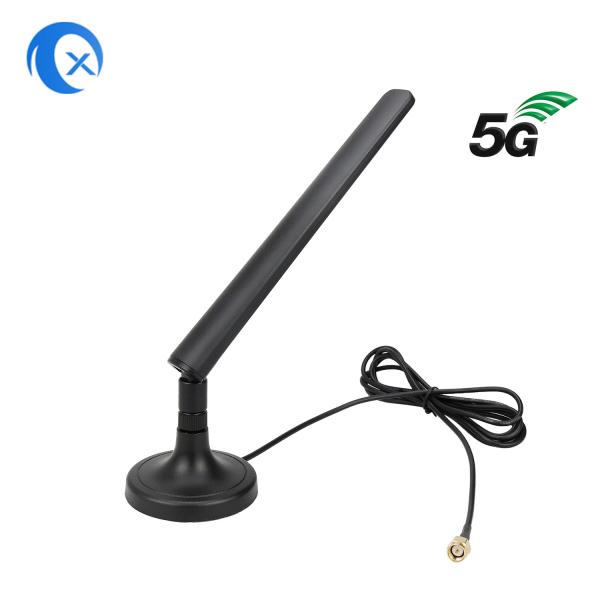

600MHz - 6GHz LTE/4G/5G indoor Antenna with high strong magnetic
mount RG174 cable SMA
Electrical Specifications of Ultra-wideband fiberglass antenna
| Frequency range(Hz) | 617~ 960 MHz / 1710~2690 MHz/ 3300~6000 MHz |
| Gain (dBi) | 2.53 dBi / 2.79dBi / 4.17 dBi |
| VSWR | ≤4.0 |
| Input impedance(Ω) | 50 |
| Polarization | Linear |
| Lightning Protection | DC Ground |
| Input connector type | SMA male |
| Mechanica Specifications |
| Dimensions(mm) | RG174 3M |
| Openrating temperature(℃) | —45～85 |
| Radome color | Gray, Black, White |
Feature
Exquisite appearance
Good secrecy
High positioning accuracy
High transmission rate
Optimized dimension
Strong anti-interference capability
The transmission power is very small
Low-power
Extremely wide bandwidth.
UWB Antenna For Wireless Applications Technology
Ultra-wideband wireless technology is a short-distance, the most
advanced wireless communication technology that uses bandwidths
above 1 GHz and has low signal power spectral density.
The technology was first proposed by the US Department of Defense
in 1989, and in April 2002, the Federal Communications Commission
(FCC) issued preliminary specifications for UWB equipment. At
present, UWB technology is gradually getting more and more
applications in short-range wireless communication.
The definition of UWB includes any system that uses an ultra-wide
spectrum. Any radio system is called an ultra-wideband system as
long as it meets one of the following conditions:
In (1) and (2), fH and fL are the high-end frequency and low-end
frequency of the transmission bandwidth, respectively.
Ultra-wideband wireless communication has the following
characteristics:
(1) High transmission rate. Because the frequency band of the
system is very wide, according to the Shannon channel formula, in
the case of a low signal-to-noise ratio, the system can also
achieve a transmission rate of several hundred megabits per second
to 1 Gbit/s over a short distance.
(2) High positioning accuracy. Because of the use of very
short-duration narrow pulses and strong temporal and spatial
resolution capabilities, the multipath resolution of UWB signals is
extremely high.
Ultra-wideband radio communication can integrate positioning and
communication. Unlike GPS, which provides absolute geographic
location, a signal in the form of a baseband narrow pulse can give
a relative position, and its positioning accuracy can reach
centimeter level.
(3) Sharing spectrum. Because the signal is spread over a wide
spectrum, the power spectral density emitted by the system is very
low, which is similar to background noise for other systems, so it
can share the spectrum with other narrowband signals.
(4) Strong penetrating power. Because the baseband narrow pulse
contains more low-frequency components, it can smoothly pass
through the ground, concrete, water, and other media for detection.
