    5.8dBi Fiberglass LoRaWAN Antenna For Helium Hotspot Miner

    Ask Lasest Price
    Brand Name : TX
    Model Number : TX-HG045
    Certification : ISO
    Price : 5.5-7.9 USD
    Payment Terms : T/T
    Supply Ability : 100k Per month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

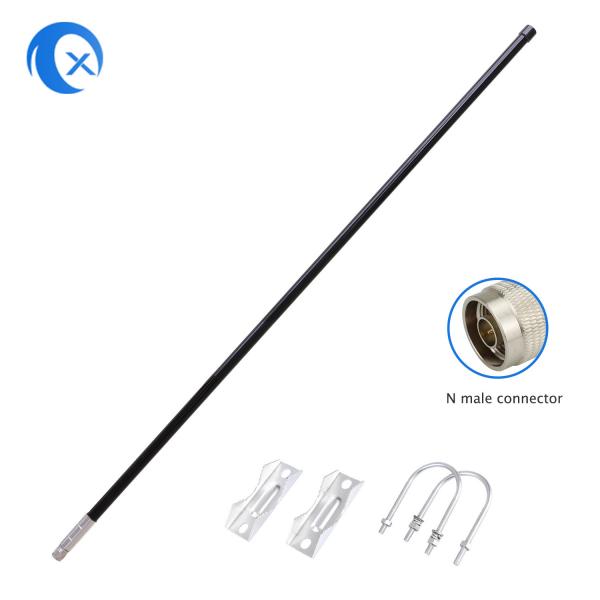

    5.8dBi Fiberglass LoRaWAN Antenna For Helium Hotspot Miner

    860-930MHz 5.8dBi LoRaWAN Antenna Black Fiberglass antenna for helium hotspot miner


    Features:
    1. Strong anti-shock, waterproof, and anti-corrosion ability.
    2. Work around the clock.
    3. Optimized size and frequency band.
    4. High gain, low standing wave, strong anti-interference ability.

    Electrical Specifications of Ultra-wideband fiberglass antenna

    Frequency range(Hz)

    860-930 MHz

    Gain (dBi)

    5.8

    VSWR

    ≤2.0

    Input impedance(Ω)

    50

    Polarization

    Vertical

    Lightning Protection

    DC Ground

    Input connector type

    N Male or Requested

    Mechanica Specifications

    Dimensions(mm)

    20*1000

    Openrating temperature(℃)

    —45~85

    Radome color

    Gray, Black, White


    Fiberglass Antenna for base station

    These series are heavy-duty, Omnidirectional fiberglass base station antennas. It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating. Operate on 100 MHz, 433MHz, 868MHz, 915Mhz, 2.4 GHz, 3G, 4G, 5G, and 6 GHz frequencies and are used for ISM, Wi-Fi, IoT, RFID, UWB, and DSRC applications. Two types of antenna mounting are offered: connector mount and pole/mast mount. Antennas with a connector mount do not include additional mounting hardware, they have an N Plug connector and are IP67 certified. Antennas with a pole/mast mount are attached to an included aluminum guided pipe which is attached to a pole/mast with included mounting brackets. They have an N Jack connector. Tengxiang base station antennas have gain from 3 to 12 dBi.


    Product show:


    5.8dBi Fiberglass LoRaWAN Antenna For Helium Hotspot Miner5.8dBi Fiberglass LoRaWAN Antenna For Helium Hotspot Miner5.8dBi Fiberglass LoRaWAN Antenna For Helium Hotspot Miner5.8dBi Fiberglass LoRaWAN Antenna For Helium Hotspot Miner


    Why choose us?

    1. Hundreds of antenna products for optional, they are used for communication, IoT devices, security camera, smart home/city, automotive, medical, drone, etc.
    2. We provide a one-stop solution of antennas, coaxial cables, and plastic parts by your requirements. With our complete in-house design, R&D, testing, and manufacturing services.
    3. More than 200 employees, and auto-assembly lines in the factory, no worries about the production capability.
    4. By supplying our clients with high-quality products at competitive prices, we try to be all customer's partners and provides excellent services.
